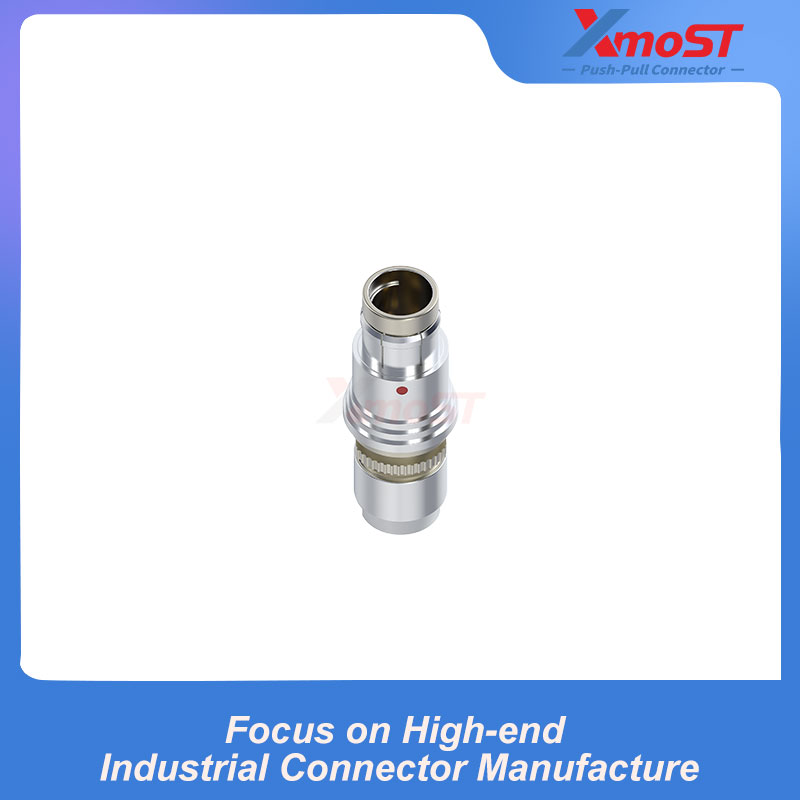

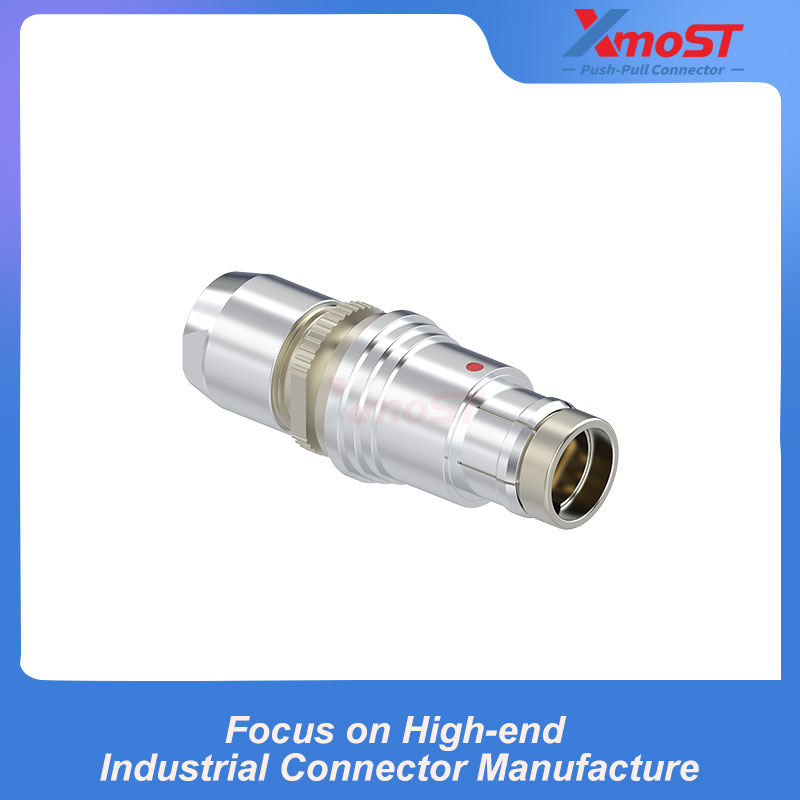

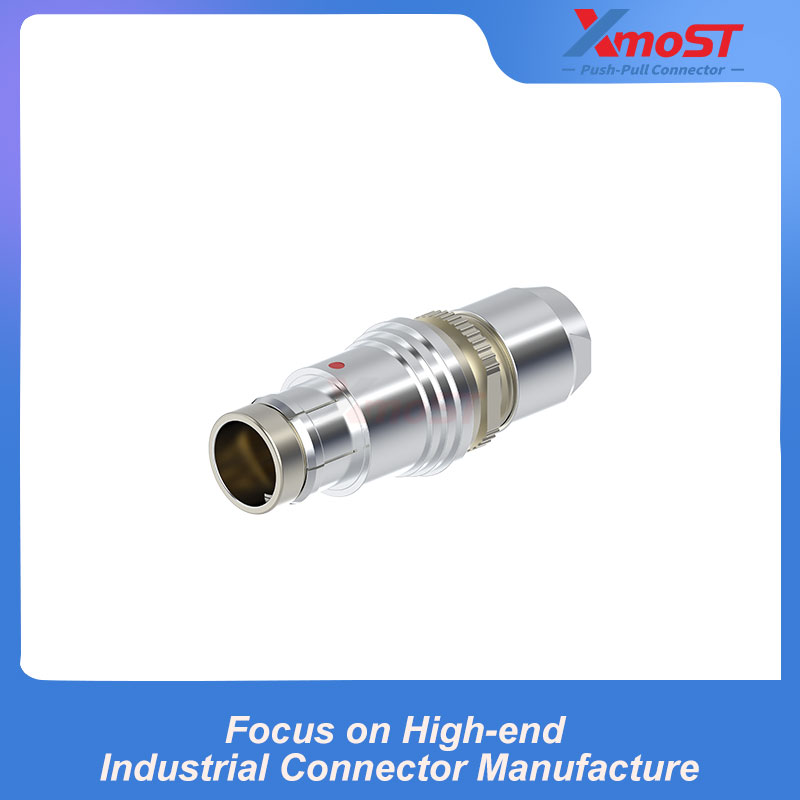

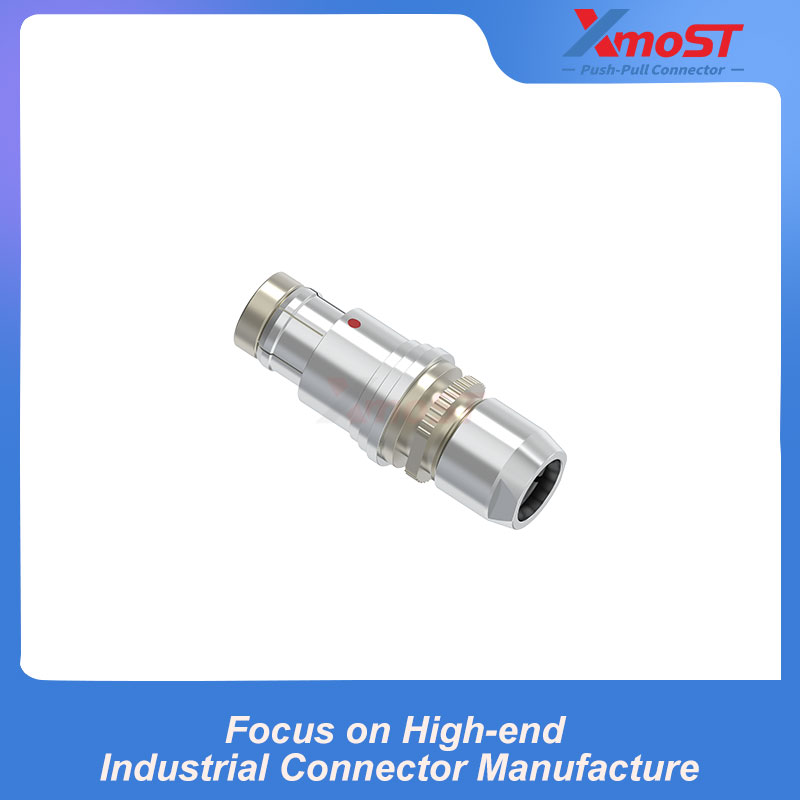

XM-OAS1 is an F Series Push-Pull connector in a short straight plug configuration with a cable clamp. It uses a half-moon ring positioning structure with 1 or 2 positioning options for reliable alignment during mating. Its shortened straight design provides a compact connector solution where installation length is limited, while the cable clamp helps maintain a secure cable connection.
Product Features & Advantages
- Short straight Push-Pull connector configuration
- Half-moon ring positioning with 1 or 2 positioning options
- Cable clamp for secure cable fixation
- Compact connector body for space-limited installation
- Self-latching mechanism for quick and secure mating
- Metal housing for a robust connector structure
- Keyed positioning supports convenient blind mating
- High resistance to shock and vibration
- Waterproof when properly mated and assembled into a cable assembly
Dimensions
| Series | A (mm) | B (mm) | L1 (mm) | L2 (mm) | SW1 (mm) | SW2 (mm) |
|---|---|---|---|---|---|---|
| 0F | 9.0 | 12.0 | 34.5 | 24.5 | 8 | 8 |
| 1F | 12.0 | 15.0 | 42 | 30 | 11.5 | 12 |
| 1.5F | 12.4 | 15.5 | 37 | 47 | 11 | 11 |
| 2F | 15.0 | 18.0 | 48 | 36 | 13 | 13 |
| 3F | 18.0 | 21.2 | 48 | 33 | 16 | 16 |
Технические параметры
| Параметр | Характеристика |
|---|---|
| Рабочая температура | -55°C ~ +250°C |
| Ресурс подключения | >5000 циклов |
| Материал изолятора | PEEK |
| Материал контактов | Медный сплав, позолоченный |
| Влажность | Макс. 95% относительной влажности при 60°C |
| Основной материал | Латунь, никелированная |
| Уплотнение / O-кольцо | FKM |
| Степень защиты | IP68 |
| Испытание соляным туманом | Более 144 часов |
| Экологическое испытание | 55/175/21 |
| Устойчивость к вибрации | 10–2000 Гц, 15g |
| Устойчивость к удару | 100g, 6 мс |
| Экранирующие характеристики | 75dB (10MHz) / 40dB (1GHz) |
| Сопротивление изоляции | ≥1000Ω |
Product Industry Applications
- Compact Outdoor Electronics
- Portable Test Equipment
- Industrial Control Devices
- Communication Equipment
- Medical Equipment
- Precision Instrumentation
