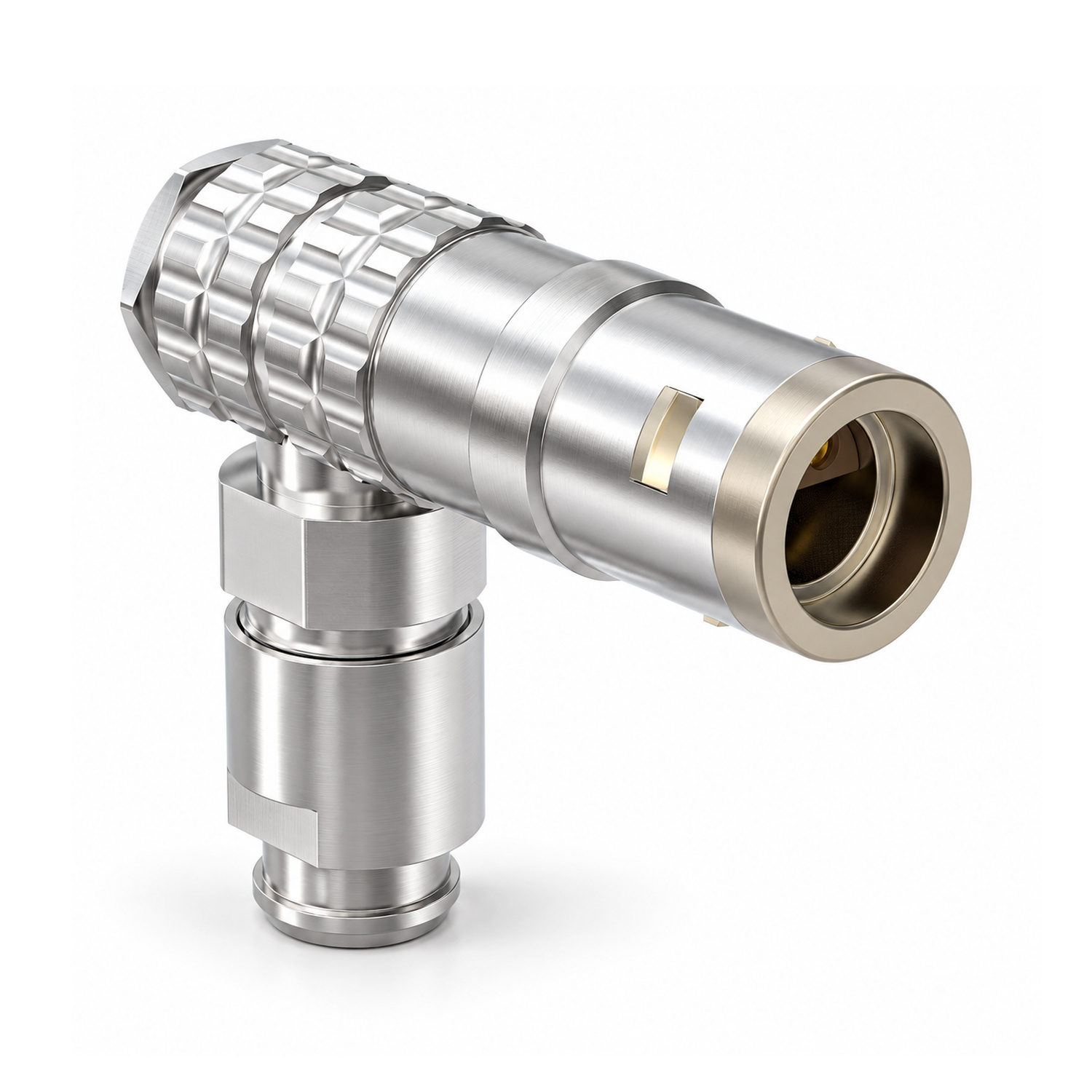

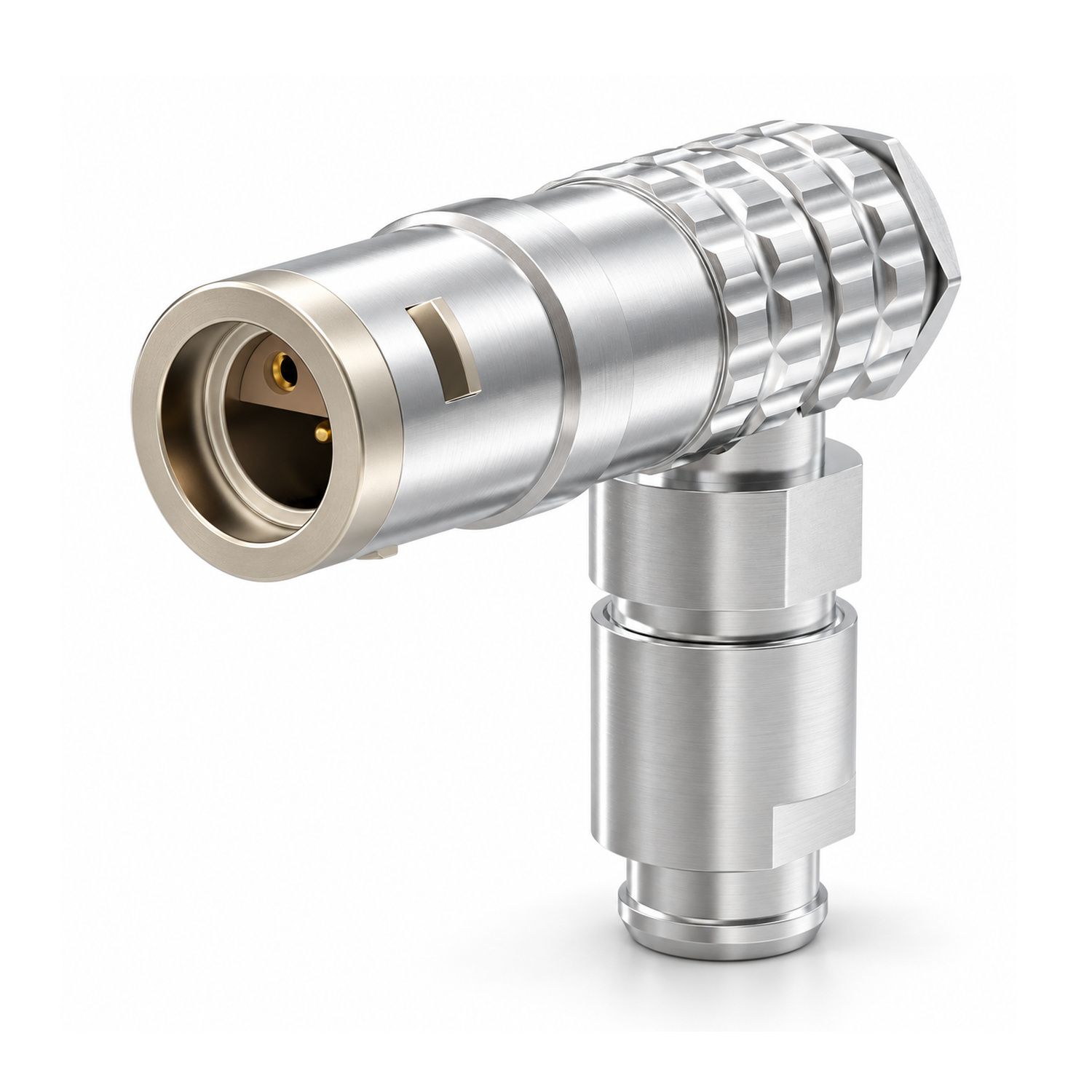

XM-LFLA is a waterproof right-angle connector designed for outdoor and demanding industrial cable assemblies. It features a self-locking connection, stepped alignment insulator, cable clamp, and backshell with strain relief.
The 90° configuration helps route cables in compact installation spaces. With IP66/IP68 protection and an operating temperature range of -55°C to +200°C, the connector is suitable for harsh industrial and outdoor environments.
Key Features
- 90° right-angle plug design
- Push-pull self-locking mechanism
- Stepped alignment insulator
- G or A–M alignment pin options
- Cable clamp
- Backshell with strain relief
- IP66/IP68 protection
- More than 5,000 mating cycles
- High resistance to vibration, shock, humidity, and salt spray
Dimensions
| Series | A (mm) | H (mm) | L1 (mm) | L2 (mm) | SW1 (mm) | SW2 (mm) | SW3 (mm) |
|---|---|---|---|---|---|---|---|
| 0E | 11 | 23.5 | 37 | 26 | 8 | 7 | 10 |
| 1E | 13 | 30 | 43 | 29 | 10 | 9 | 12 |
| 2E | 16 | 40 | 51 | 35 | 13 | 12 | 15 |
| 3E | 19 | 47 | 60 | 40 | 15 | 15 | 18 |
| 4E | 25 | 57 | 72 | 51.5 | 20 | 19 | 24 |
All dimensions are in mm.
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | E-Series |
| Connector Model | XM-LFLA |
| Connector Type | Right-Angle Plug |
| Locking Mechanism | Self-Locking |
| Alignment Pin | G or A–M |
| Cable Connection | Cable Clamp |
| Backshell | With Strain Relief |
| Protection Grade | IP66 / IP68 |
| Operating Temperature | -55°C to +200°C |
| Mating Cycles | >5,000 |
| Shielding Effectiveness | >95 dB at 10 MHz / >80 dB at 1 GHz |
| Salt Spray Test | >144 hours |
| Humidity | Max. 95% Relative Humidity at 60°C |
| Vibration Resistance | 10–2000 Hz, 15 g |
| Shock Resistance | 100 g, 6 ms |
| Environmental Test | 50/175/21 |
| Insulation Resistance | ≥100 MΩ |
Applications
- Outdoor industrial equipment
- Industrial automation
- Instrumentation and control
- Industrial cable assemblies
- Outdoor communication equipment
- Harsh-environment applications
